設(shè)計鉚釘參考表 |
||||||
|
目的: 盡量選用標(biāo)準(zhǔn)之鉚釘,盡量減少鉚釘之種類(規(guī)格). |
||||||
|

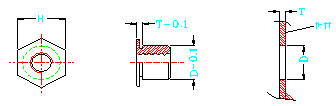

SO型 |
|
|||||
|
原材料對邊尺寸H |
適用之螺紋 |
沖孔徑D |
原材料對邊尺寸H |
適用之螺紋 |
沖孔徑 D |
|
|
H4.75 |
M2; M3 |
4.1 |
H4.75 |
#4-40 |
4.3 |
|
|
H5.0 |
M2; M3 |
4.1 |
H6.35 |
4-40;6-32 |
5.5 |
|
|
H6.0 |
M3 |
5.1 |
H7.0 |
4-40;6-32 |
||
|
H6.35 |
M3; M3.5 |
5.5 |
H8.0 |
6-32;8-32 |
7.2 |
|
|
H7.0 |
M3 |
6.1 |
H9.0 |
8-32;10-32 |
8.2 |
|
|
H8.0 |
M3; M4 |
7.1 |
|
|
|
|
|
H9.0 |
M4; M5 |
8.1 |
|
|
|
|
|

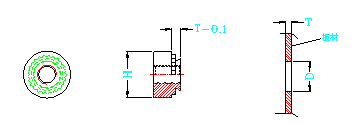

S型 |
|
|||||
|
原材料對邊尺寸H |
適用之螺紋 |
沖孔徑D |
原材料對邊尺寸H |
適用之螺紋 |
沖孔徑D |
|
|
Φ6.35 |
M2; M3 |
4.3 |
Φ6.35 |
#4-40 |
4.3 |
|
|
Φ7.0 |
M3; M3.5 |
4.8 |
Φ7.0 |
#6-32 |
4.8 |
|
|
Φ8.0 |
M3; M4 |
5.5 |
Φ8.0 |
#8-32 |
5.5 |
|
|
Φ8.5 |
M5 |
6.5 |
Φ8.5 |
#10-24;10-32 |
6.4 |
|
|
Φ11.0 |
M6 |
8.8 |
Φ11.0 |
#10-42 |
8.8 |
|
|

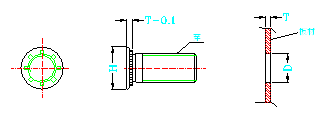

FH型 |
|
|||||
|
原材料對邊尺寸H |
適用之螺紋 |
沖孔徑D |
原材料對邊尺寸H |
適用之螺紋 |
沖孔徑 D |
|
|
Φ4.1 |
|
|
Φ4.5 |
#4-40 |
2.9 |
|
|
Φ4.6 |
M3 |
3.1 |
Φ5.2 |
#6-32 |
3.6 |
|
|
Φ5.3 |
M3.5 |
3.6 |
Φ6.0 |
#8-32 |
4.2 |
|
|
Φ5.9 |
M4 |
4.1 |
Φ6.5 |
#10-32 |
4.9 |
|
|
Φ6.5 |
M5 |
5.1 |
|
#10-24 |
4.9 |
|
|
Φ8.2 |
M6 |
6.1 |
|
#10-28 |
|
|
|
Φ8.6 |
M8 |
8.1 |
Φ8.6 |
#10-42 |
6.4 |
|
